Strom BMW B48 Engine Oil level Dipstick Kit V1
BMW B48 Engine Oil Level Dipstick Kit V1
Add a convenient and accurate manual oil dipstick to your BMW B48 engine with the STROM Motorsports B48 Engine Oil Level Dipstick Kit V1.
For track and motorsport applications in particular, having a conventional dipstick allows the oil level to be checked quickly between sessions, during servicing or before heading out on track.
Ideal for B48 Engine Swaps
A physical dipstick is particularly useful when installing a B48 into an older BMW chassis or custom vehicle.
The kit is an excellent addition to applications such as:
-
BMW E36 B48 engine swaps
-
BMW E46 B48 engine swaps
-
B48-powered track cars
-
B48 race cars
-
Motorsport builds
-
Custom B48 engine conversions
-
High-performance road cars
It provides a straightforward way to incorporate conventional oil-level monitoring into a modern B48-powered build.
Threaded Oil Pan Installation

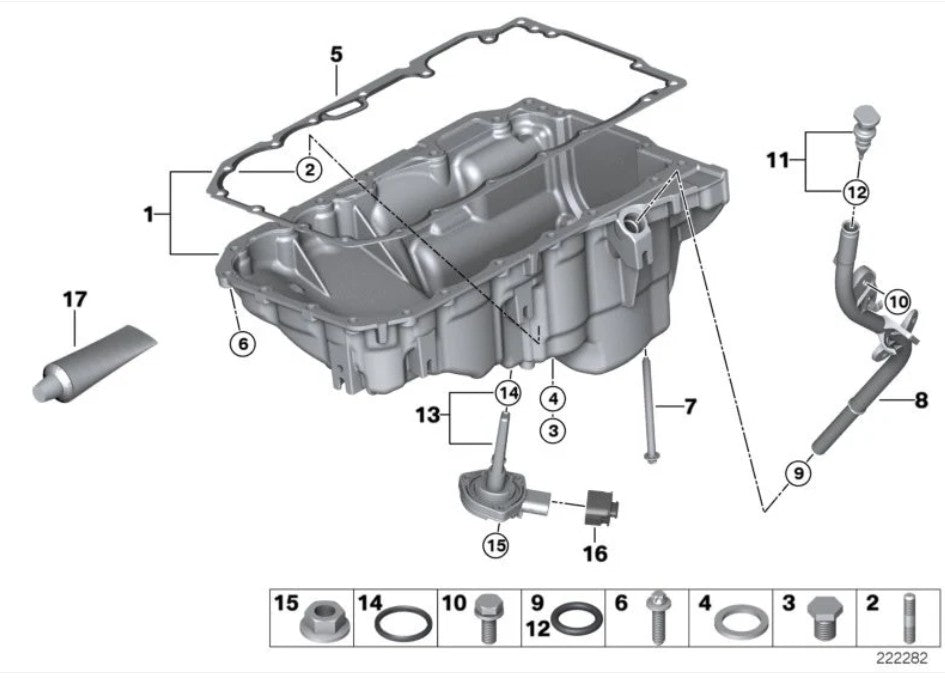

The V1 kit installs directly into the BMW B48 oil pan.
Installation requires an existing location in the oil pan to be:
Drilled using an 11/16" drill bit
and then:
Tapped to 3/4"-16 thread
Once the oil pan has been correctly drilled and tapped, the dipstick tube simply threads into the newly prepared opening.
This creates a permanent and secure mounting point for the mechanical oil dipstick.
V1 vs V2 B48 Dipstick Kit
STROM offers two different solutions for adding a physical dipstick to a B48 engine.
B48 Dipstick V1
The V1 kit installs directly into the oil pan and requires drilling and tapping. This provides a dedicated dipstick installation while allowing the factory oil-level sensor arrangement to remain separate.
B48 Dipstick V2
The V2 version installs in place of the factory oil-level sensor and bolts directly into the engine without requiring the oil pan to be drilled or tapped.
Choose the version that best suits your engine configuration and whether you need to retain the factory oil-level sensor.
Important Installation Information
Installation of the V1 kit requires permanent modification of the oil pan.
The mounting location must be accurately drilled with an 11/16" bit and tapped to 3/4"-16 before the dipstick tube can be installed.
Because drilling and tapping the oil pan incorrectly could damage the sump or introduce metal debris into the engine, installation should be carried out carefully by an experienced technician or engine builder.
After installation, verify the dipstick reading against a known and correctly measured quantity of engine oil before relying on it for future oil-level checks.
A Practical Upgrade for Track-Driven B48 Engines
Checking engine oil level regularly is especially important on vehicles subjected to hard track or motorsport use.
The STROM Motorsports BMW B48 Engine Oil Level Dipstick Kit V1 provides a simple mechanical solution, allowing the oil level to be checked immediately rather than relying exclusively on electronic monitoring.
Whether you're building a B48-swapped E36, E46, dedicated race car or high-performance track build, this kit provides a convenient way to add traditional manual oil-level monitoring to your BMW B48 engine.
