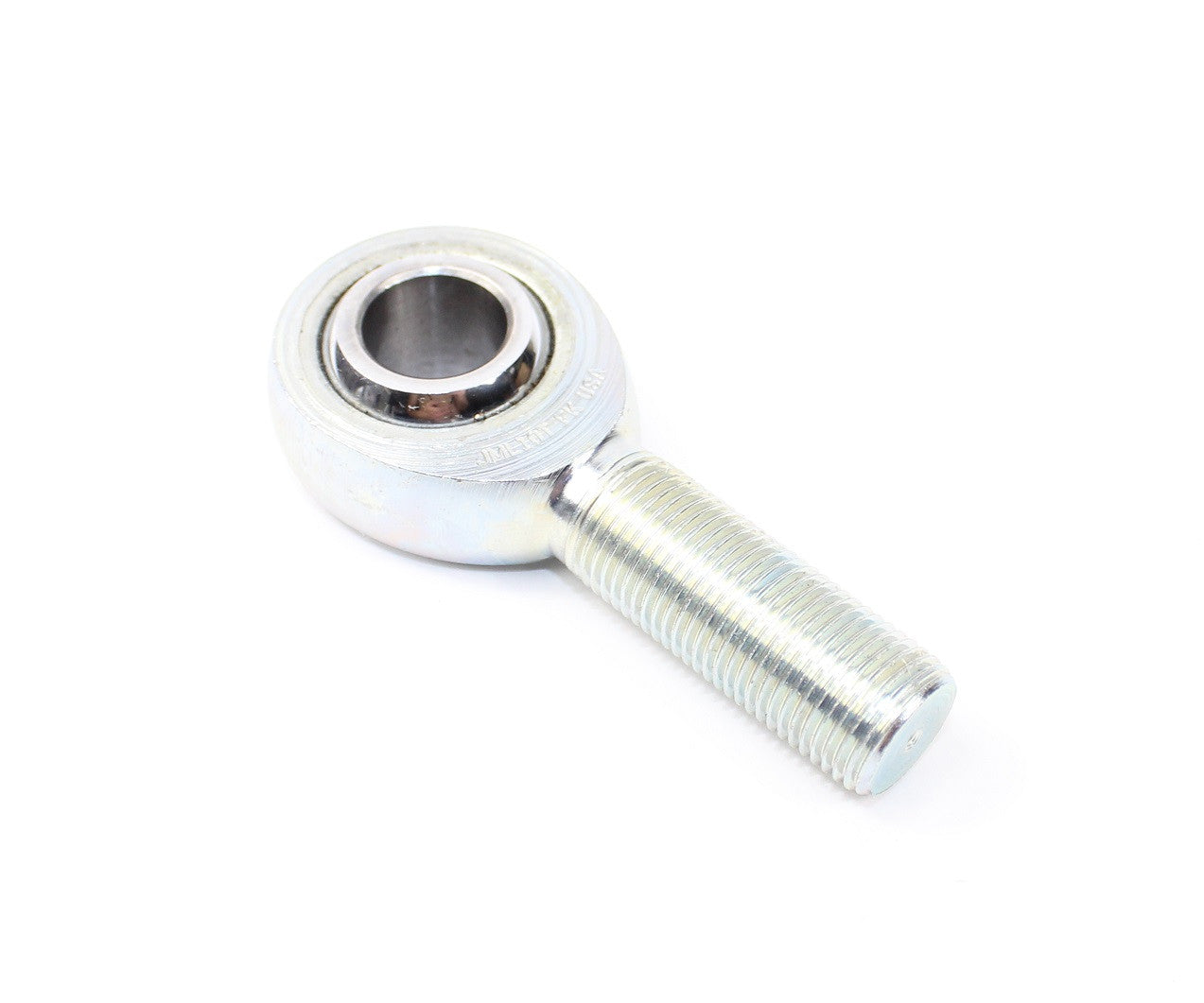

FK Bearings JM10T Rod End Heim Joint – 5/8" RH Thread x 5/8" Bore PTFE Lined

The FK Bearings JM10T Rod End Heim Joint is a premium-quality spherical rod end designed for high-performance suspension and motorsport applications. Featuring a 5/8" right-hand thread, 5/8" bore, and a PTFE Teflon-lined bearing, this rod end delivers exceptional strength, smooth articulation, and long-term durability for demanding road and race environments.

Manufactured by FK Bearings and trusted by leading suspension manufacturers such as SPL Parts, the JM10T rod end is engineered to provide precise suspension movement while maintaining maximum reliability under load.

Premium FK Bearings Motorsport Quality

FK Bearings are renowned worldwide for producing some of the highest-quality spherical bearings and rod ends used throughout professional motorsport, time attack, drifting, circuit racing, and performance road car applications.

Key Features

✔ Genuine FK Bearings JM10T rod end
✔ 5/8" right-hand thread
✔ 5/8" bore size
✔ PTFE Teflon-lined spherical bearing
✔ Self-lubricating design
✔ Silver finish
✔ 16° articulation range
✔ Static radial load rating of 7,400 lbs
✔ Sold individually

PTFE Teflon-Lined Bearing Technology

The integrated PTFE liner provides smooth, low-friction operation without the need for routine greasing.

Benefits of PTFE-Lined Rod Ends

• Reduced friction and wear

• Self-lubricating operation

• Increased service life

• Improved resistance to contamination

• Consistent performance under high loads

• Lower maintenance requirements

Ideal for applications where precision and reliability are critical.

High Strength & Precision Engineering

Designed to withstand demanding suspension loads, the FK JM10T offers a static radial load rating of 7,400 lbs, making it suitable for both road and motorsport use.

Technical Specifications

• Manufacturer: FK Bearings

• Model: JM10T

• Thread Size: 5/8" Right-Hand Thread

• Bore Size: 5/8"

• Bearing Type: PTFE Teflon-Lined Spherical Bearing

• Articulation: 16 Degrees

• Static Radial Load Rating: 7,400 lbs

• Finish: Silver

• Sold Individually

Compatible SPL Parts Applications

This rod end is used across a wide range of SPL Parts suspension and chassis products.

Nissan Applications

• SPL RUA S13

• SPL RTR S13

• SPL RTA S13 / S14 / Z33 / Z34

• SPL RLL Z33 / Z34

• SPL HCK Z32

Mazda Applications

• SPL RUA NC

• SPL RTR NC

Toyota Applications

• SPL RTR FRS

• SPL RTA FRS

• SPL RTAEL FRS

• SPL RLL FRS

BMW Applications

• SPL RUA F8X/E9X

• SPL RTR F8X


• SPL RWB E9X

Porsche Applications

• SPL RTA 996

• SPL RTAEL 996

• SPL DB 996

• SPL LCA 996

• SPL RLCA 986

Please verify your existing component specifications before ordering.

Ideal for Motorsport & Performance Suspension Systems

The FK JM10T rod end is perfectly suited for:

• Adjustable Suspension Arms

• Rear Toe Arms

• Rear Traction Arms

• Rear Upper Arms

• Chassis Bracing Systems

• Drift Cars

• Time Attack Vehicles

• Track Day Cars

• Circuit Racing Applications

• Custom Motorsport Fabrication

Its high load capacity and precision construction make it a trusted choice for drivers seeking reliable suspension performance.

Why Choose FK Bearings Rod Ends?

FK Bearings products are trusted by motorsport professionals worldwide due to their exceptional manufacturing quality, precise tolerances, and proven durability. When replacing worn spherical bearings, using genuine FK components ensures your suspension system continues to perform exactly as intended.

Maintain Peak Suspension Performance

Whether you're rebuilding an SPL Parts suspension arm or upgrading a custom suspension setup, the FK Bearings JM10T Rod End Heim Joint provides the strength, articulation, and reliability needed for serious performance driving and motorsport use.
