The Rogue Engineering GTR Widebody wheelset features a FORGED, one-piece wheel, utilizing our own centerlock mounting system. They are designed to fit ONLY in conjunction with the 2M Autowerks E46 M3 GTR widebody kit. They are not designed to fit standard body E46 M3s.

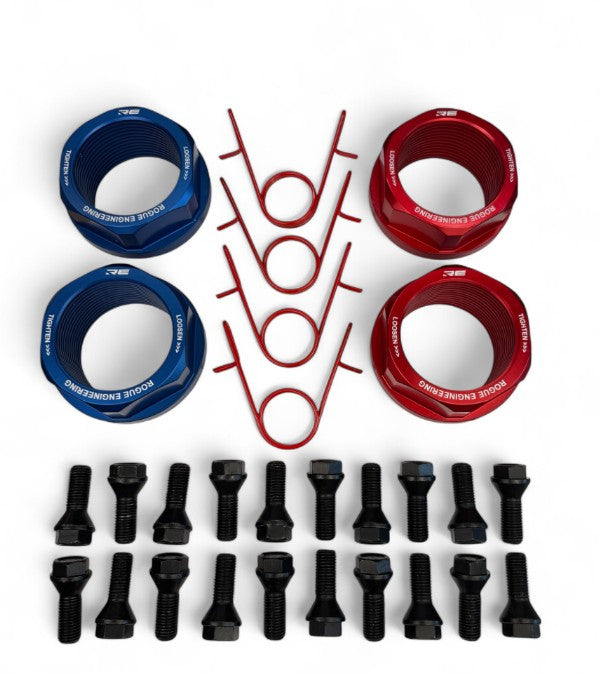

The wheelset kit includes;
- Two (2) front wheels
- Two (2) rear wheels
- Four (4) centerlock adapters (two LH thread, two RH thread)
- Four (4) centerlock nuts (two LH thread, two RH thread) with spring clips
- Hardware to attach centerlock adapters to vehicle

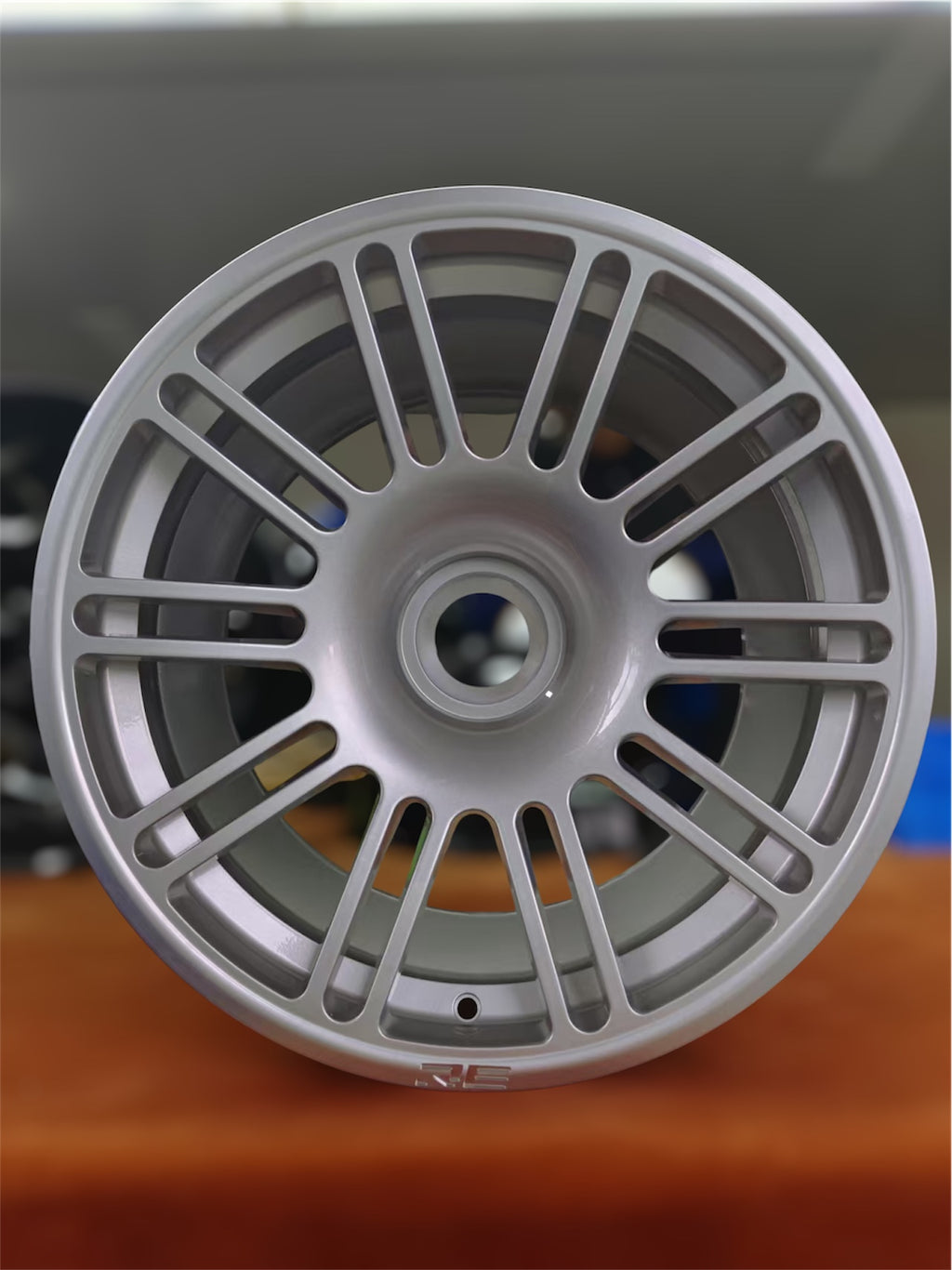

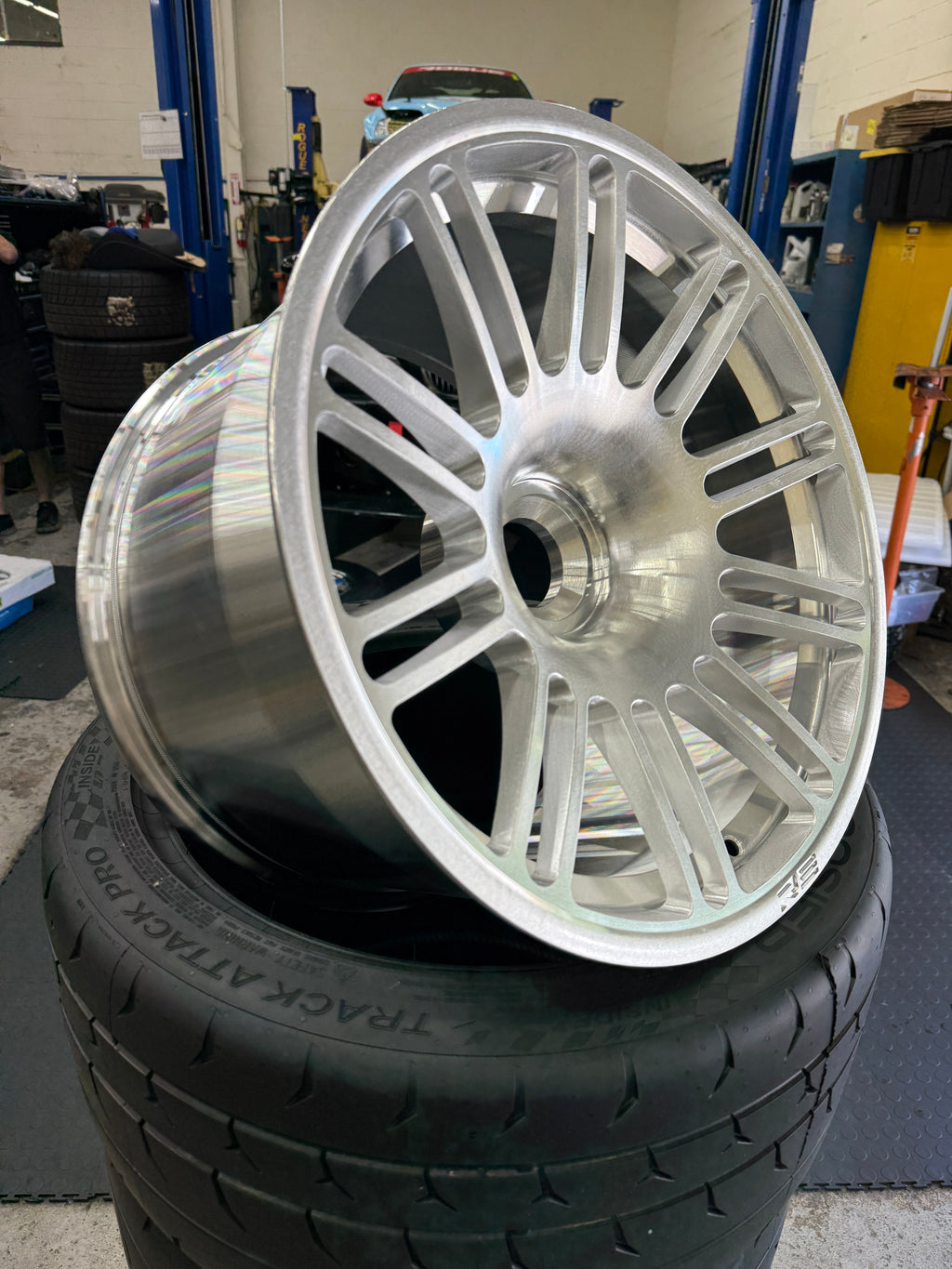

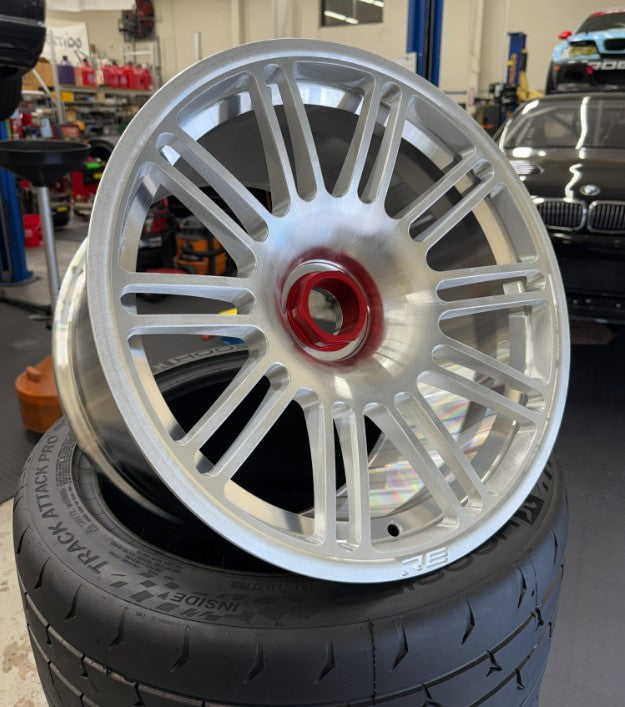

Details of the Wheels;
- Fully forged construction
- Front, 18x10
- Rear, 18x11
- Bright silver paint
- Face and back pad engineered to specifically work with with our centerlock adapter

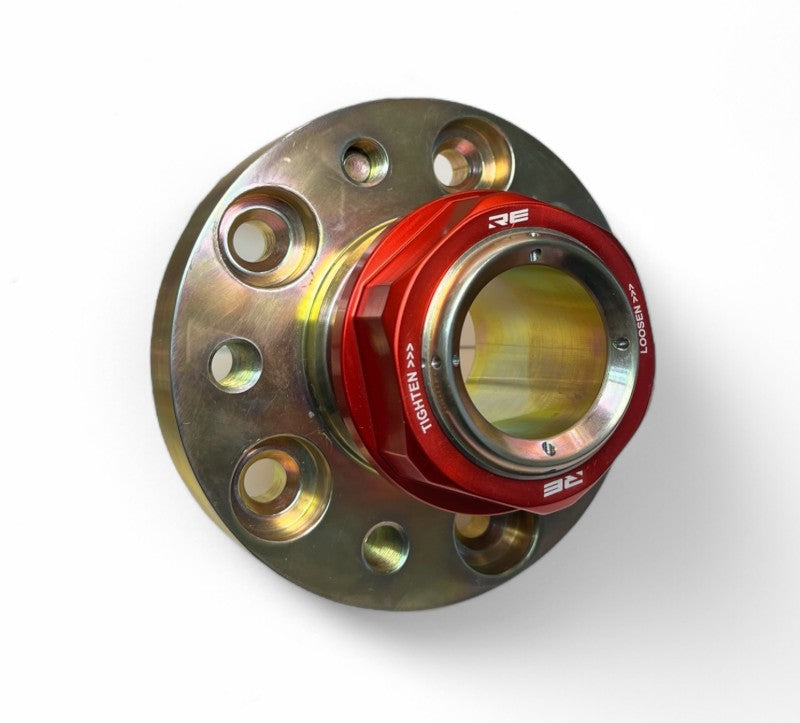

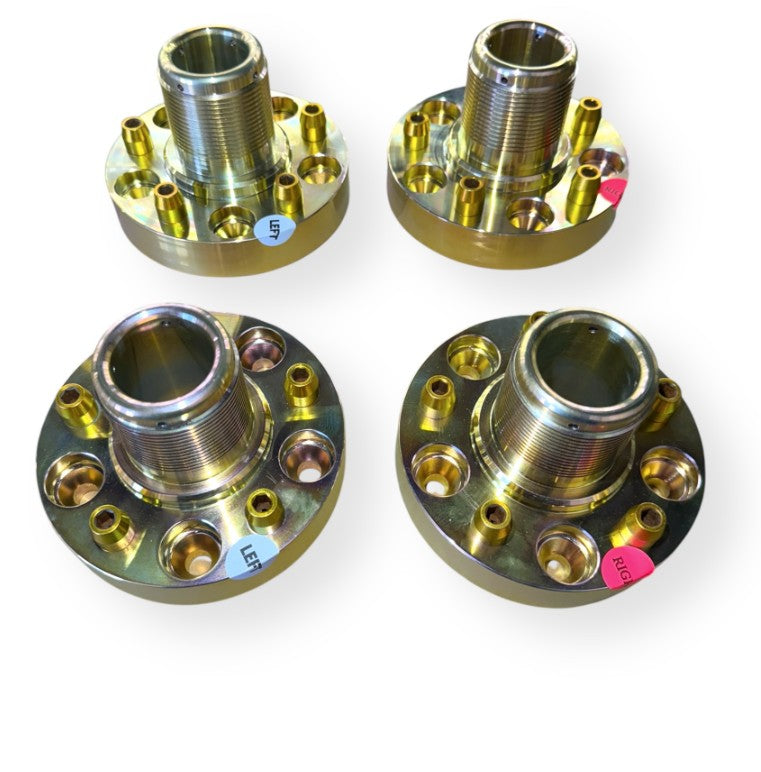

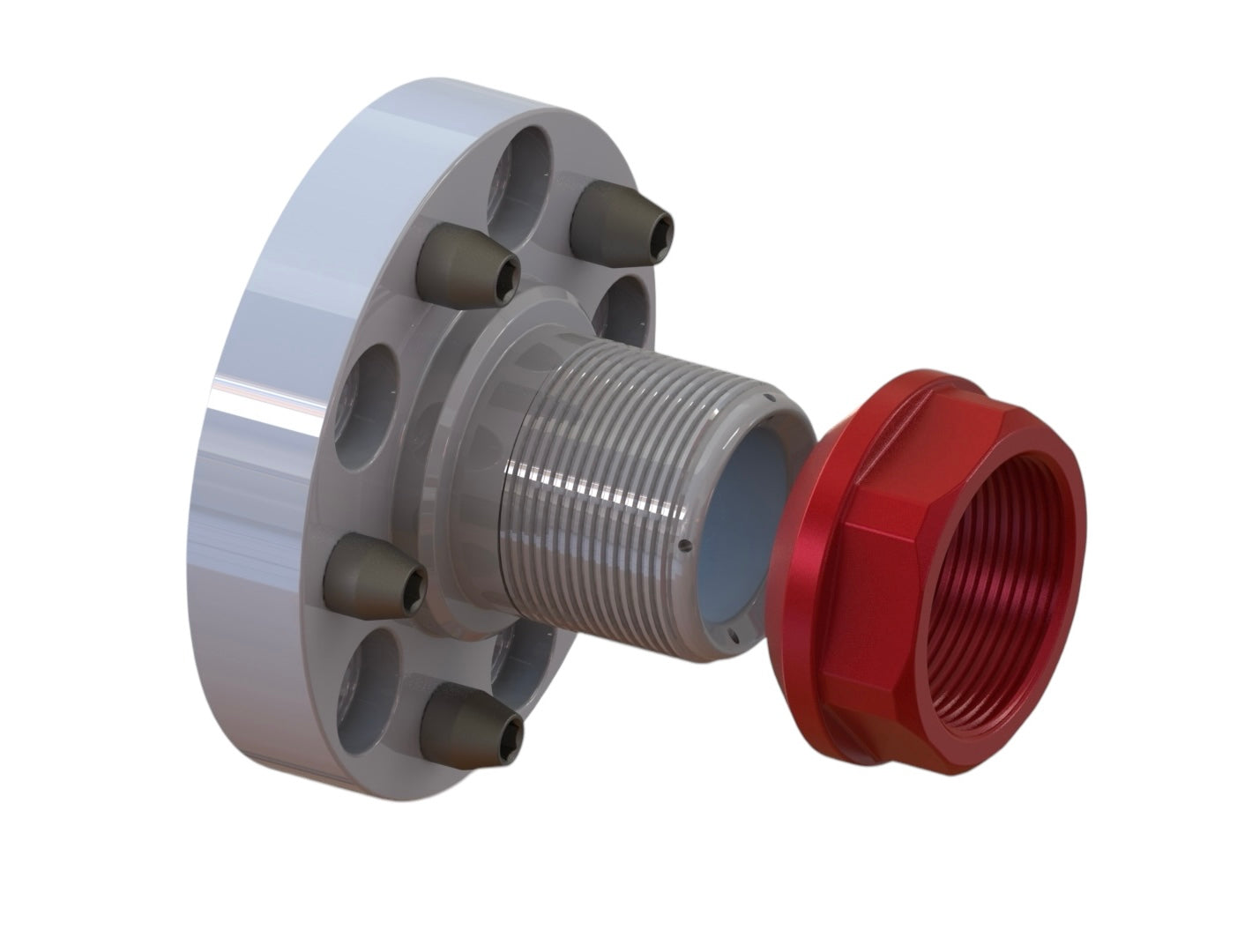

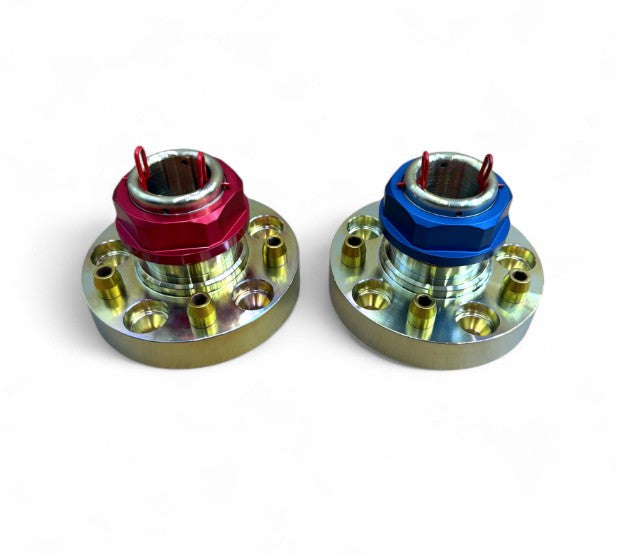

Details of the centerlock hub adapter;
- Full billet CNC construction from 4340 chromoly steel, yellow-zinc plated
- 20 lug bolts to attach adapter to OEM hub face
- 190k PSI replaceable torque pins, yellow-zinc plated
- 7075-T6 aluminum centerlock nuts (left and right) that is installed with a 3" hex socket (not included)

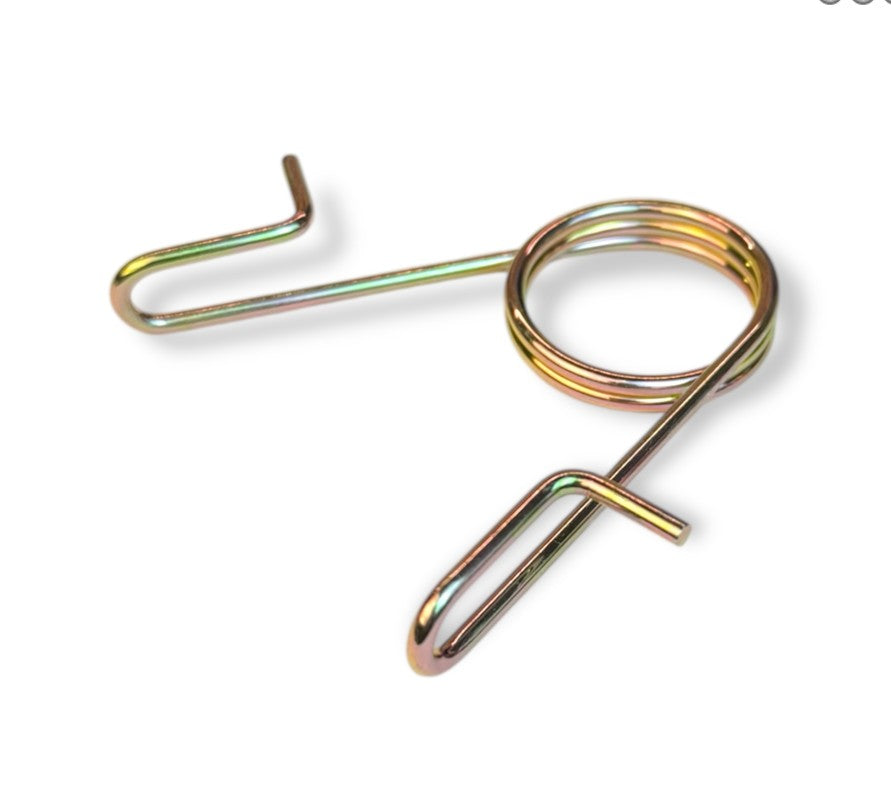

- Four (4) lock spring clips, powder coated red
Element of Design
Inspired by retro motorsport designs, these Rogue Engineering GTR centerlock wheels are in fact created from fully-forged aluminum blanks. This increases the costs of our flow-formed versions, but it was also the only way to keep production quantities low enough to make this happen.
Inspired by retro motorsport designs, these Rogue Engineering GTR centerlock wheels are in fact created from fully-forged aluminum blanks. This increases the costs of our flow-formed versions, but it was also the only way to keep production quantities low enough to make this happen.
Authentic BBS RE594 magnesium wheel (front) as used on the BMW E46 M3 IMSA GT car
The inspiration behind the Rogue Engineering GTR wheel
Notes:
- Designed specifically to fit the 2M GTR bodykit for the E46 M3. We do not know if it will other brands widebody kit.
- Recommended tires sizes are 275/35R18 front, 305/30R18 rear. Rear can be increased to 315 as well.
- Wheels and centerlock adapters NOT sold separately. Replacement wheels and centerlock parts available only to registered buyers of the kit.
- Torque for the nut is 395 ft. lbs.
- A 3" socket is required for installation of the nut.
