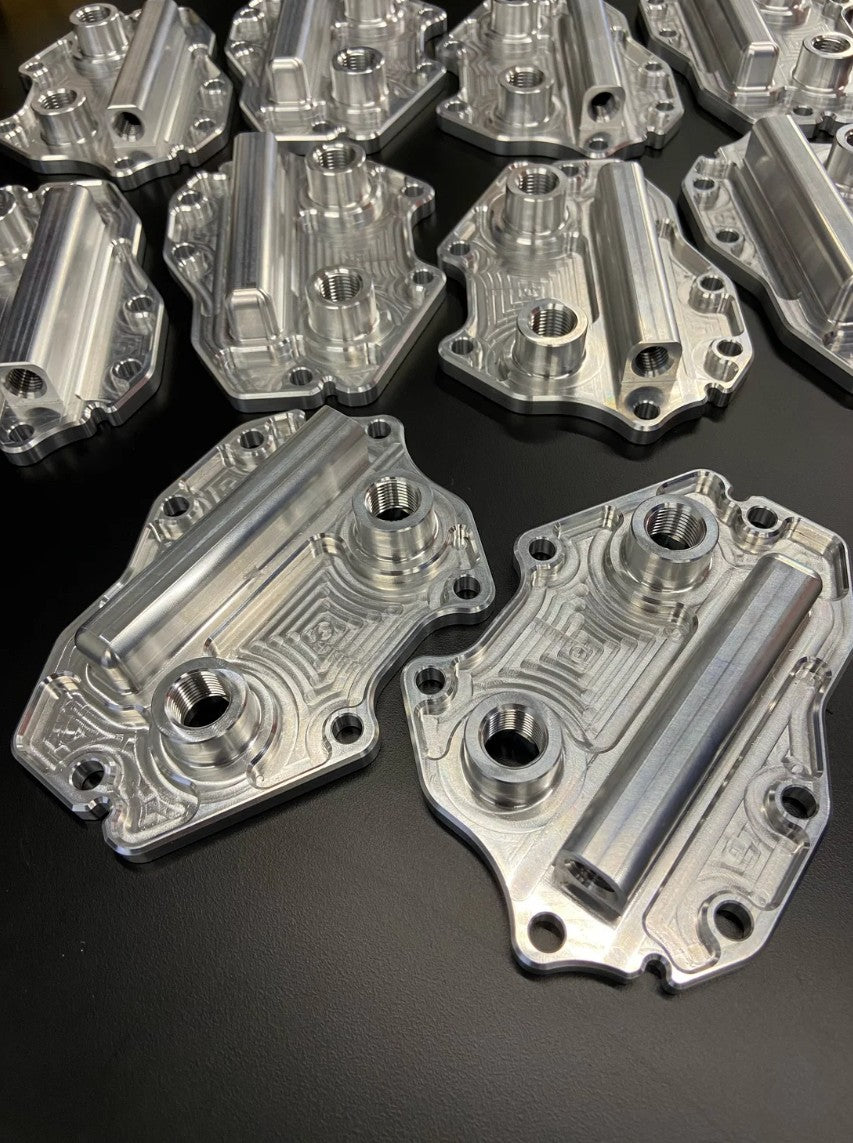

BMW B46D / B48D / B48TU External Oil Cooler Adapter Plate

Upgrade the oil cooling system on your BMW B48-powered vehicle with the STROM Motorsports B46D / B48D / B48TU External Oil Cooler Adapter Plate, designed to replace the factory water-to-oil heat exchanger and allow the use of a dedicated external oil cooler.

Ideal for BMW B48D, B48TU and B46D performance engines, this precision-machined adapter allows engine oil to be routed to a separate front-mounted oil cooler, helping improve both engine oil and coolant temperature management during demanding driving.

Whether you're building a track-focused BMW G20 330i, Toyota GR Supra 2.0, BMW Z4 30i or a custom B48 engine swap, this adapter provides a purpose-built solution for adding a conventional external oil cooling system.

M16x1.5 Oil Cooler Ports

The adapter features M16x1.5 threaded oil inlet and outlet ports, giving builders flexibility when configuring their external oil cooler lines.

STROM's recommended banjo-style configuration uses:

• 2 x Vibrant 24085 -8AN banjo fittings

• 2 x BMW M16 banjo bolts – 32416852470

• 4 x 16 x 20 x 1.5mm sealing washers – 07119906463

Alternatively, M16x1.5 to -8AN or -10AN adapters can be used with conventional AN hose fittings.

This provides plenty of flexibility when designing a custom oil cooler installation.

Compatible with BMW Oil Filter Housing 11428580414

The adapter is designed to fit vehicles using:

BMW Oil Filter Housing P/N 11428580414

If your B46D, B48D or B48TU engine uses this oil filter housing, the STROM plate provides the interface required to convert from the factory heat exchanger to an external oil cooler system.

Always verify the oil filter housing part number on your engine before ordering.

Vehicle Applications

STROM currently uses or lists this adapter for applications including:

• BMW G20 330i

• Toyota GR Supra 2.0

• BMW G29 Z4 30i

• STROM B46 race car with B48D engine

The adapter may also fit additional B46D, B48D and B48TU-powered vehicles using BMW oil filter housing 11428580414.

Ideal for Track & Motorsport Applications

Engine oil temperature becomes increasingly important when a B48 engine is subjected to prolonged high loads.

On a track or race car, repeated high-RPM operation, increased boost and sustained engine loads can generate considerably more heat than typical road driving.

Converting to a dedicated front-mounted external oil cooler provides an effective way to increase oil cooling capacity while separating some of the oil's heat load from the engine coolant circuit.

This makes the STROM adapter particularly suitable for:

• Track-day BMWs

• Circuit race cars

• Time attack builds

• High-power B48 engines

• B48 engine swaps

• Modified Toyota GR Supra 2.0 models

• BMW G20 330i performance builds

• BMW G29 Z4 30i track builds

Important Installation Information

This adapter plate does not include a new oil filter housing gasket, as BMW does not sell the required gasket independently.

External oil cooler lines, AN fittings and the oil cooler itself will also need to be selected according to your vehicle and installation requirements.

Professional installation is recommended, particularly when designing and assembling custom engine oil lines.
